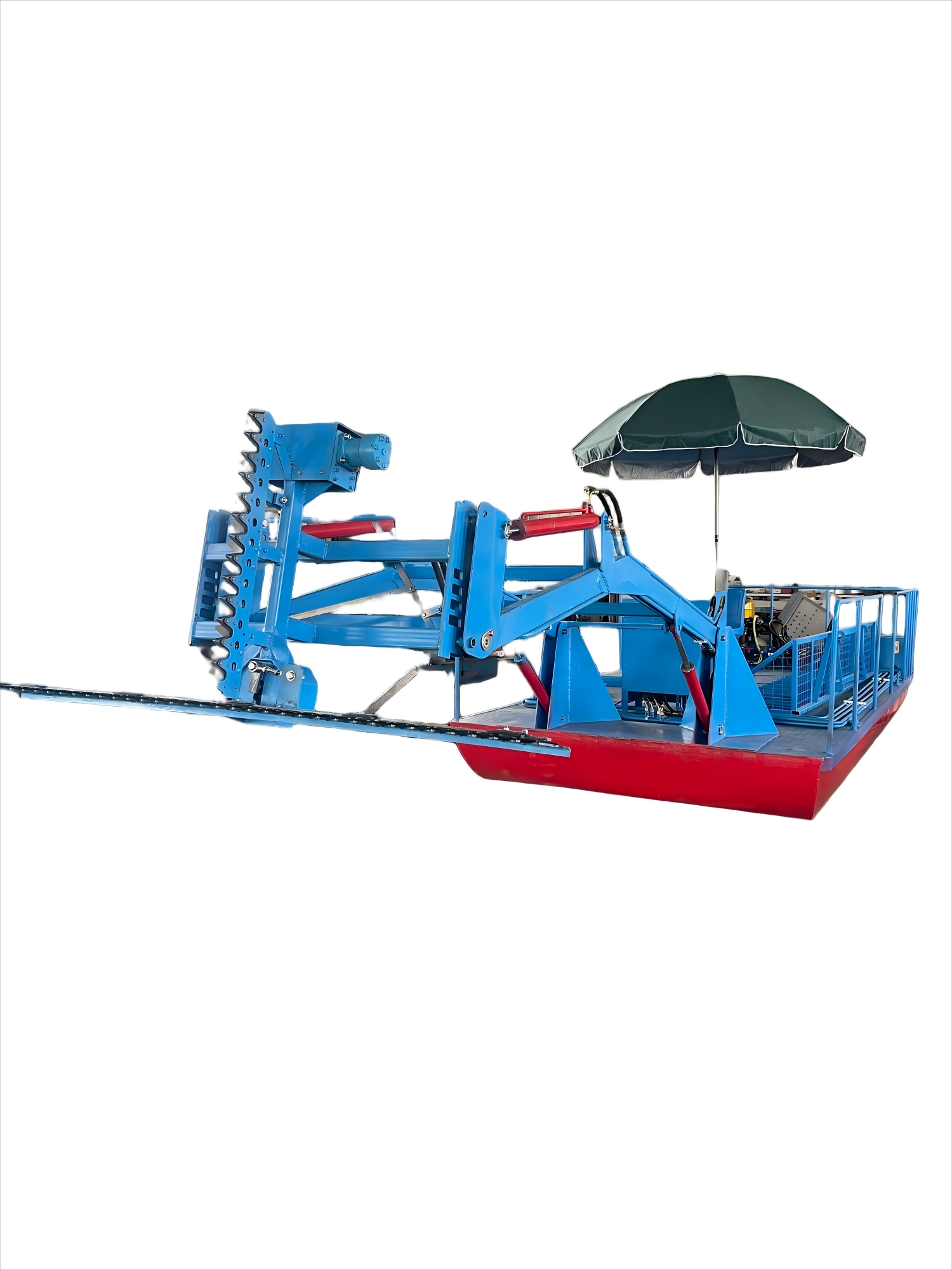

Basic parameters
①Total length 8.5 meters, pontoon body 2.5 meters wide, 5 meters long, 0.7 meters thick, 0.3 meters draft
②Scissors horizontal blade 2 meters, vertical blade 0.8 meters
Bucket length 3 meters, height 0.5 meters, thorn length 0.6 meters
③Engine: Changchai 24 horsepower Hummer type
Power speed: 17kw2200 rpm
Speed: 8-10 kilometers/hour
Drive mode: single propeller hydraulic push
④Oil pump hydraulic gauge oil motor gear motor composition
③Operation table: open-air driving table with parasol stainless steel protective cover
Main functions
1. The horizontal blade can cut reeds and cattails.
The vertical blade can cut water peanuts, green grass, water hyacinth, and angular vines.
2. The boat bucket can salvage weeds, cut reeds, cattails, and water duckweed.
3. Save labor: the working efficiency of one machine is equivalent to the working efficiency of 50 people, and more than 60 acres can be cleaned every 8 hours.
Maintenance precautions
1. During use, butter the bearings and cylinder shafts of each part, and check whether the screws are tightened frequently.
2. Regularly check whether the hydraulic oil is sufficient, whether the hydraulic oil pipe is leaking, and whether the sealing ring is damaged.
