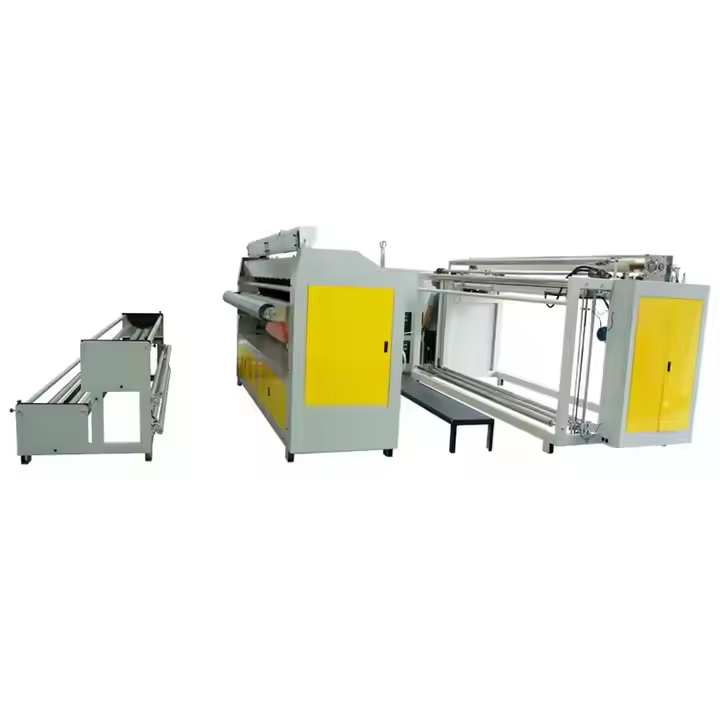

Manufacturer Direct Wholesale 2.4m Width Cross Horn Ultrasonic Embossing Quilting Machine for Bedspr
FeatureWorking with no needles replacing the sewing threads.Patterns can be changed freely.Working effective width of the fabric: 1000--3000mm.Functionmolding,welding,sealing,bonding, embossing, bronzing, etc.Suitable materialcomposite material, thermoplastic film and plastics slice, such as c
Feature | Working with no needles replacing the sewing threads. Patterns can be changed freely.
Working effective width of the fabric: 1000--3000mm. |
Function | molding,welding,sealing,bonding, embossing, bronzing, etc. |
Suitable material | composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth, nylon cloth, knitting cloth, non spin
cloth, gush glue cotton, PE paper, PE,PVC,ABS, and so on. |
Application | Lace clothing, tablecloth, chair cover, bedspread, pillowcase, quilt cover, curtain, mattress, bedsheet,etc. |
Technical parameter：
Model | Power supply | Speed | Effective width | Machine size | N.W |
1600-S | 7KW 380V 3 phase (220V) | 0~30m/min | 1600mm | 5x2x1.8m | 1500KG |
1800-S | 8KW 380V 3 phase (220V) | 0~30m/min | 1800mm | 5x2.3x1.8m | 1800KG |
2400-S | 8KW 380V 3 phase (220V) | 0~30m/min | 2400mm | 5x2.9x1.8m | 2400KG |
2700-S | 9KW 380V 3 phase (220V) | 0~30m/min | 2600mm | 5x3.2x1.8m | 2700KG |
3000-S | 9KW 380V 3 phase (220V) | 0~30m/min | 3000mm | 5x3.5x1.8m | 3000KG |
Product Characteristics
Instead of needle and thread, it avoids changing threads for beauty. More three-dimensional sense,adapting to thetimes trend change decorative pattern at will at request of customers. High sewing strength and production effect.
Product Features
Adopt ultrasonic technology to weld and stitch the fabric together without needle and thread.
Application Cases
It is able to produce various chemical fiber fabrics as well as the combination of artificial leather and glue-spreadingcotton, non-woven fabrics or needle-punched cotton, with freely designed decorative pattern..lt can also producesuch fabrics as clothing,bedspread,pillow and sofa,together with upholstery.
