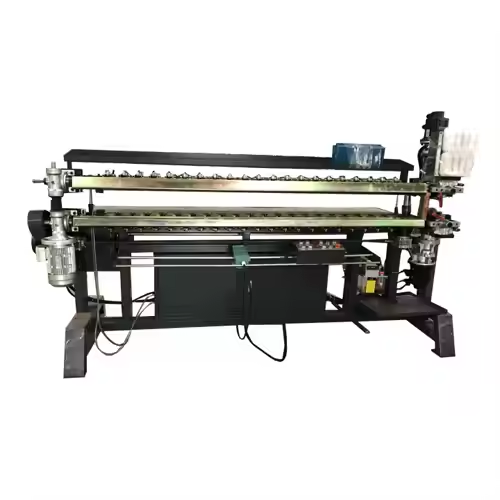

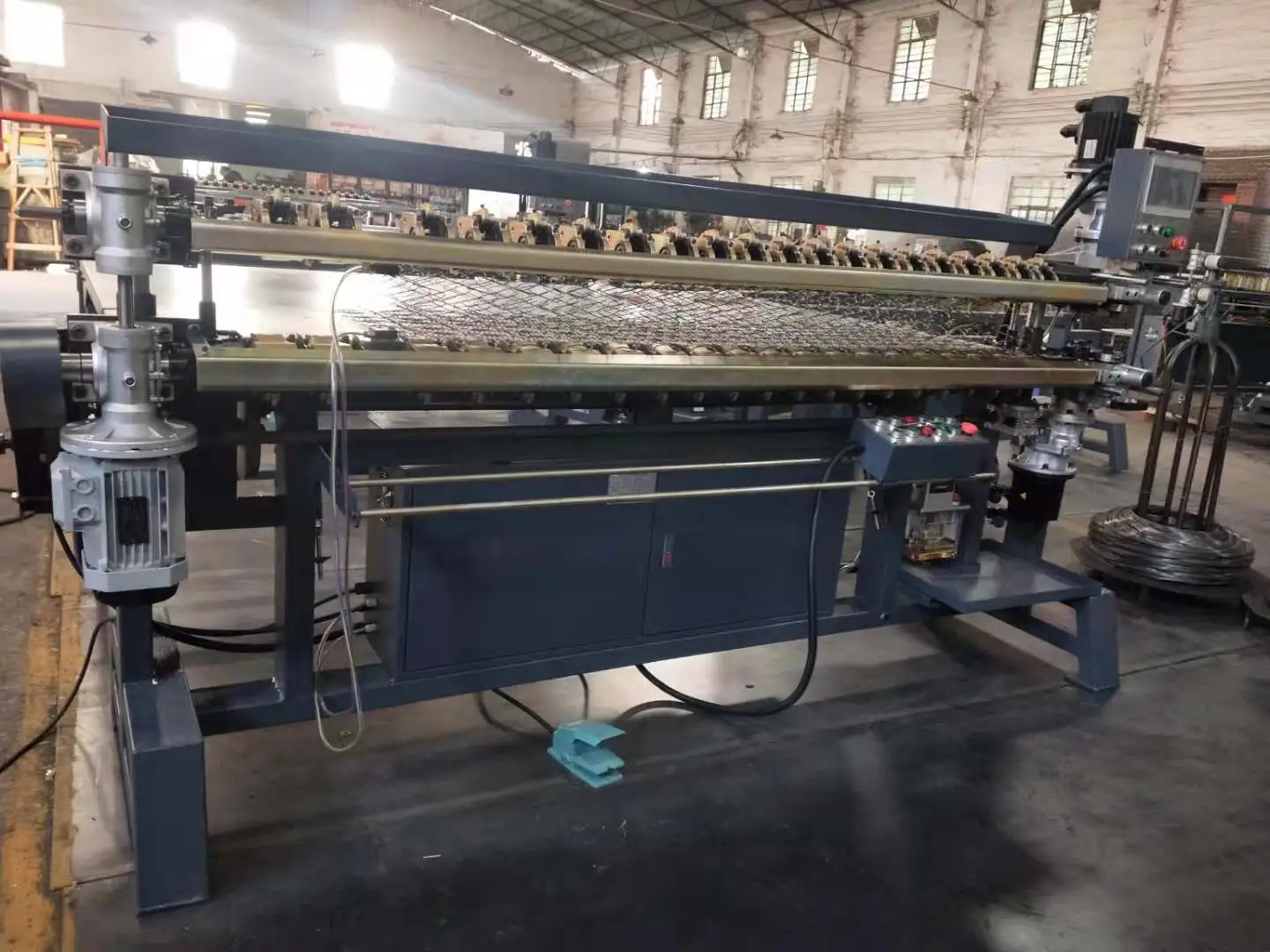

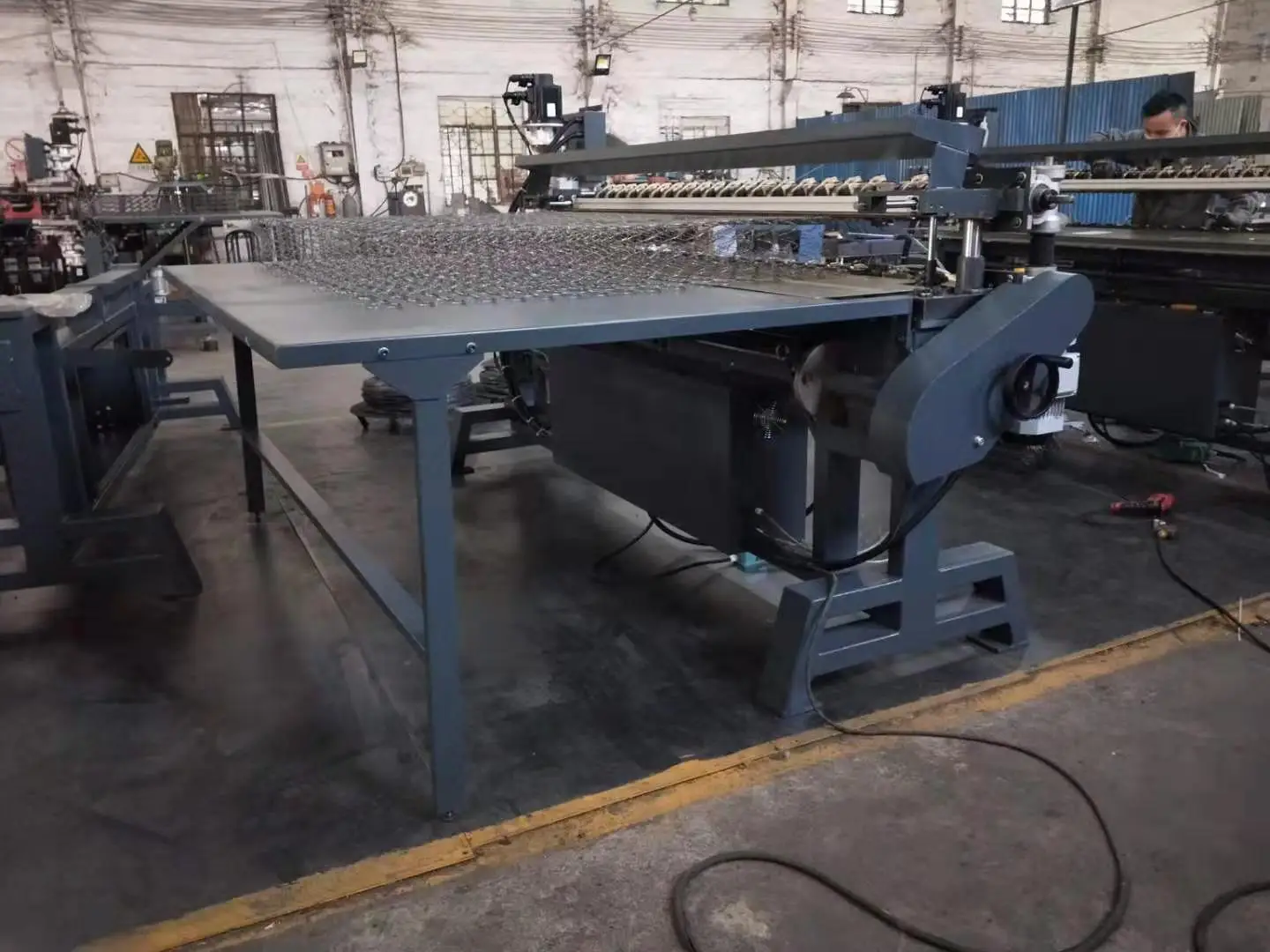

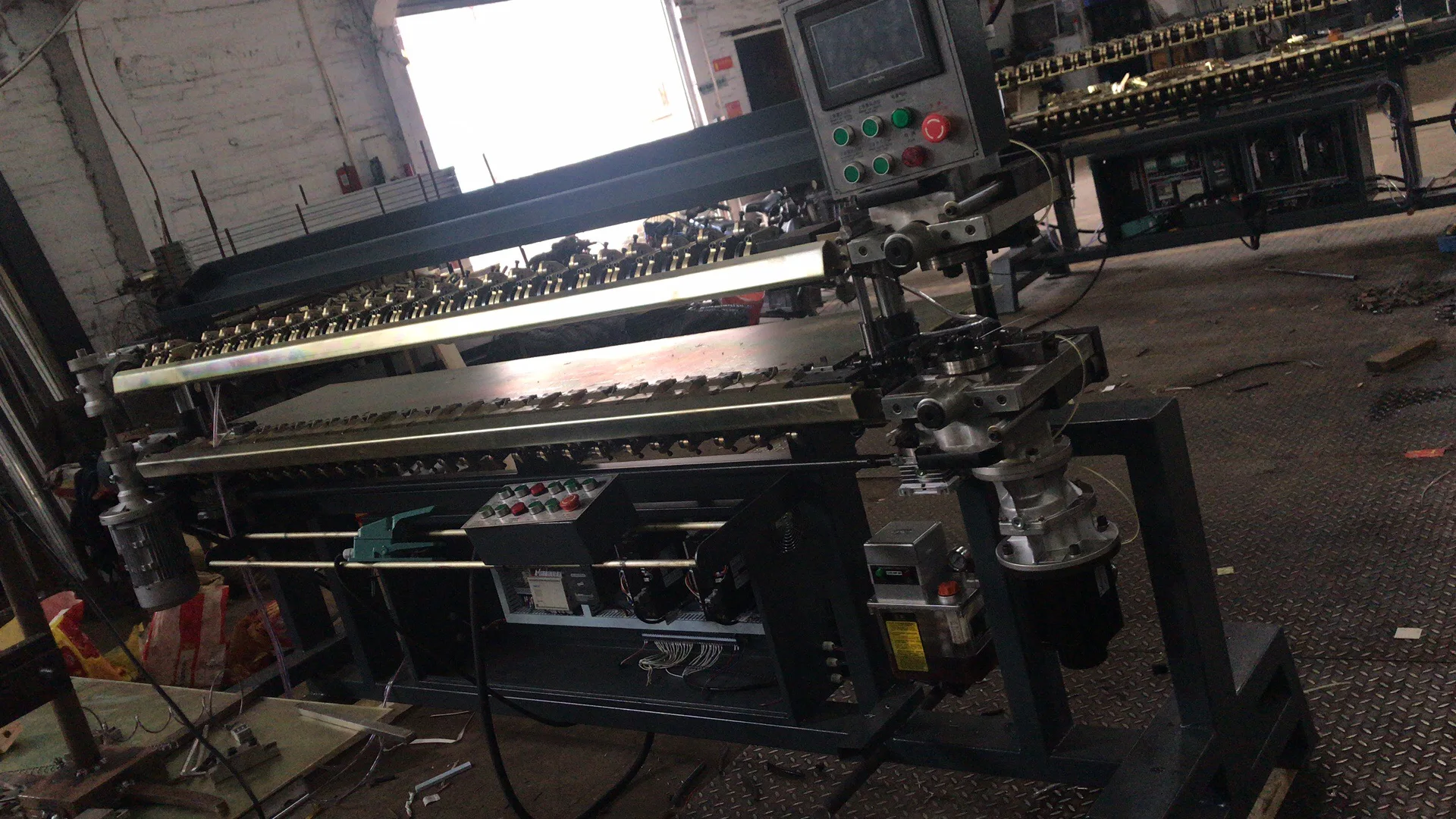

Mattress bonnell spring bed sofa cushion string assembly machine
Company Information
1) We are a professional machine factory for over 20 years;
2)Our company dealing with many kinds of quilting machine,bobbin winder machine,mattress tape edge machine, cutting machine,Quilting Embroidery Machine etc.
3)Our engineers are continous studying advanced technology from developed country, in order to make our machines better suit the customers' needs.
Product Description
| Characteristics of the equipment |
1.This machine only needs a Small footprint, one worker can operate and save cost. |
2. The size of spring bed mesh, steel wire diameter,spring diameter and height can be changed within a certain range. |
3.It Can realize upper and lower string spring, and when the string spring forward is blocked, it can automatically protect the stop, and after the coil spring is in place, the cutting receiver can be moved and a row of spring or forward row spring is introduced. |
4. The automatic cutting and bending of the string spring can be realized. |
5. The bed network automatically moves forward, and the coil spring can stop automatically when the spring is blocked. |
6. The number of spring rows can be set by computer, and the whole spring bed network can be automatically launched after completion. |
7. There is no need for air compressor to operate. The automatic lubrication system extends the service life of the machine, and rarely needs to be maintained and replaced. |
8. Thisproduct can achieve a machine work multiple models and specifications of the bed net, a machine can be able to achieve 1 meter,1.2 meters, 1.5 meters, 1.8 meters, 2 meters of bed net, once formed. without the mold. |
| 9.It Can provide different specifications of fixture accessories according to customer processing requirements. |
| Technical Data | |
| Productivity | 60-80/h |
| Net maximum width | 2m |
| String spring wire diameter | 1.3-1.6mm |
| Spring wire diameter | 1.9-2.4mm |
| Spring caliber | 53-85mm |
| Spring height | 60-200mm 80-220mm |
| Power supply | 3phase,380V,50HZ |
| Total power | 4.5kw |
| Dimension | 3100*960*1900mm |
| Weight | 1050kg |
Packaging & Shipping
Our Services
After Service:
1.The machine is guaranteed for one year.
2.We can arrange engineer to debug and install for customers.
FAQ
1,How long does the machine guarantee? |
We guarantee one year for non-human damaged factor. |
2,After service? |
Engineers available to come to your factory for supplying training and installation. |
3,How to control the quality? |
| We have professional Engineer and inspector make sure that each part of machine working well before shipment. |
4,How to contact you? |
You could contact us via TM, Skype, Whatsapp, Wechat, QQ, Email |
5,What about payment term? |
T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc.. |
| 6,If any other question please don’t hesitate to contact us any time... |
